Maximum throughput realized in the minimum space
A mixed line with a lathe and machining center can also be built in a smaller space

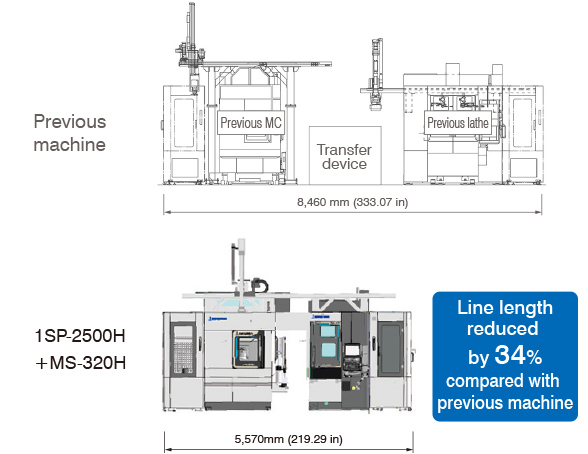

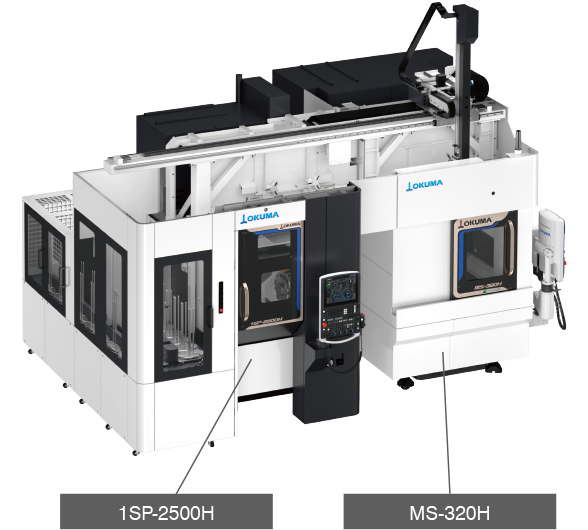

The compact structure with a narrower machine width compared with previous lathes makes building a space-saving mass production line possible. Combination with the MS-320H compact horizontal machining center realizes a mixed line with a single loader and a significantly reduced line length, improving floor-space utilization for parts machining that requires turning and milling.

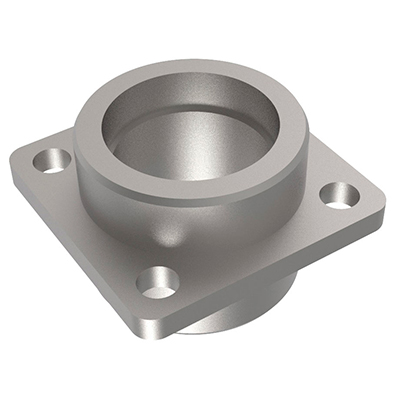

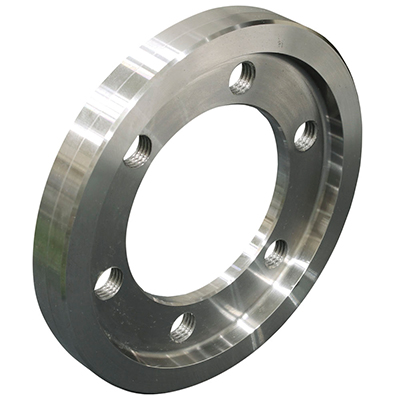

-Machining Example-

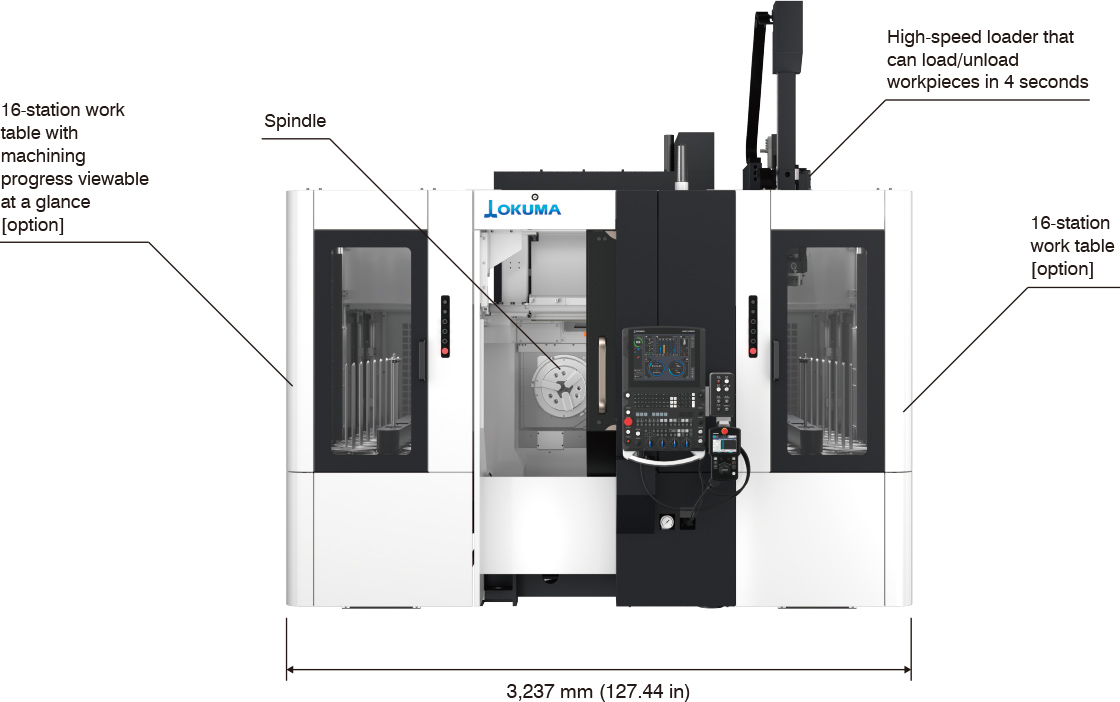

High-speed loader that minimizes the line takt time

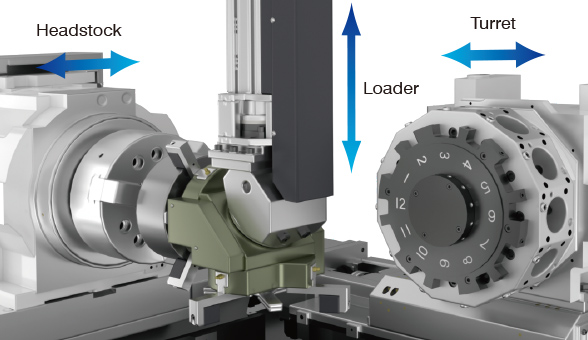

During workpiece load/unload, the headstock moves to that position. The loader can enter the machine regardless of turret position. In addition, with servo-driven hand rotation and faster speeds of all movements, workpiece load/unload time of 4 seconds* has been achieved.
* Does not include upper door open/close time.
The load/unload time of 4 seconds is actual data in the case of 4 kg × 2 pcs; different operating conditions may require more time.
| Transportable weight | 4 kg × 2 pcs | 8 kg × 2 pcs [option] |
| Workpiece dimensions | ø200 × L120 mm | ø250 × L80 mm |
High machining capacity and smooth chip discharge that
improve the throughput of mass-produced parts machining
The machine is equipped with a spindle driven by a high-speed, high-accuracy integral motor.
The turret can be equipped with a high-output milling tool spindle to realize process-intensive machining with high-efficiency milling.

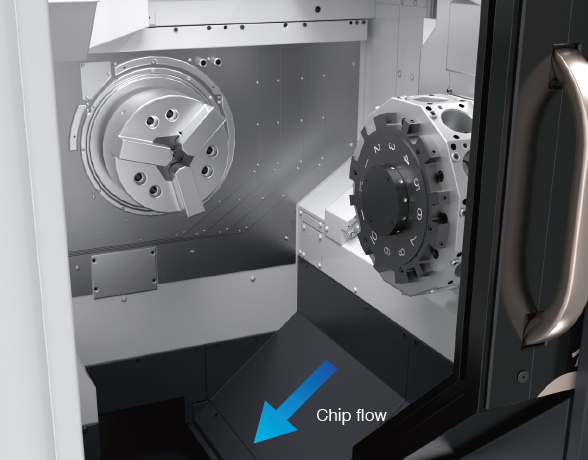

In addition, the in-machine cover structure that enables chips to flow smoothly prevents the accumulation of chips generated in large volumes by mass-produced parts machining.

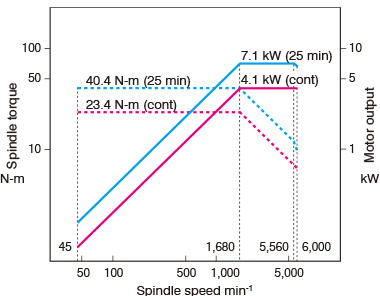

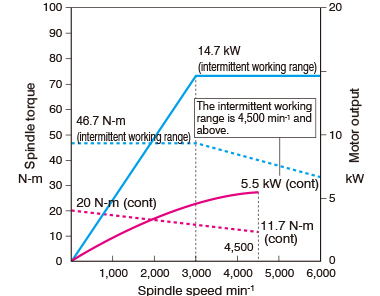

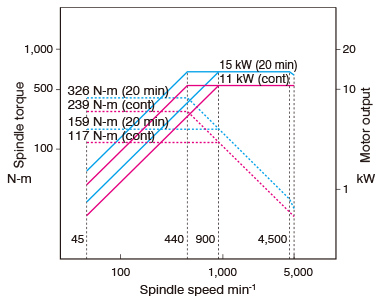

Spindle output / torque diagrams
| Turning spindle (OSP, FANUC) | |
| Spindle speed | 5,000 min-1 |
| Output | 15/11 kW (20 min/cont) |
| Torque | 326/239 N-m |
| Milling spindle (OSP) | |
| Spindle speed | 6,000 min-1 |
| Output | 7.1/4.1 kW (25 min/cont) |
| Torque | 40.4/23.4 N-m (25 min/cont) |
| Milling spindle (FANUC) | |
| Spindle speed | 6,000 min-1 |
| Output | 5.5 kW (cont) |
| Torque | 20 N-m (cont) |
Highlighted Specs (Machine Specifications)
| Item | Unit | 1SP-2500H |
| Standard chuck size | inch | 8 [10] |
| Spindle Speed | min-1 | 45 to 5,000 |
| Turret | – | V12, Multitasking V12 |
| Motor | kW (hp) | 15 (20) / 11 (15) (20 min/cont) |
| Machine height | mm (in) | 3,243 (127.68) (maximum loader height) |
| Floor space: width × depth (including tank) |
mm × mm (in × in) |
1,350 × 2,797 (53.15 × 110.12) (w/o loader) |
| Spec extension | – | M |
| CNC | – | OSP / FANUC |
*M: Milling
[ ]: option
Highlighted Specs (Loader Specifications)
| Item | Unit | 1SP-2500H |
| Transportable parts size (dia × length) | mm (in) | ø200 × 120 (ø7.87 × 4.72), [8 kg specs: ø250 × 80 (ø9.84 × 3.15)] |
| Transportable parts weight × number | kg (Ib) × pts | 4 (8.8) × 2 [8 (17.6) × 2] |
[ ]: option
