Productivity is higher with process-intensive machining
5-Axis Vertical Machining Center achieves high accuracy and decarbonization with space-saving and a large machining area

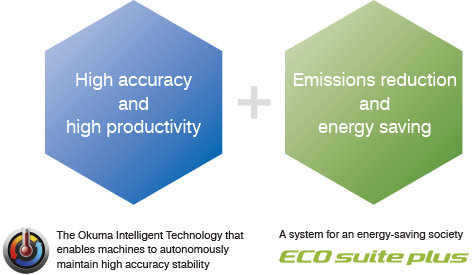

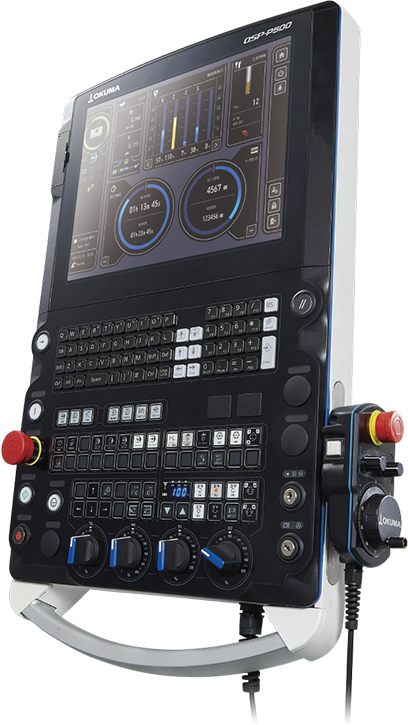

Achievement of both high accuracy and high productivity with emissions reduction and energy saving
We chose the name “Green-Smart Machine” for our machine tool that achieves high accuracy and reduced energy consumption autonomously and realizes high productivity. With Green-Smart Machines, we will contribute to the solution of social issues faced by the global manufacturing industry, together with our customers.
High machining capacity with highly rigid structural design to handle a wide range of machining from high-mix, low-volume production to mass production

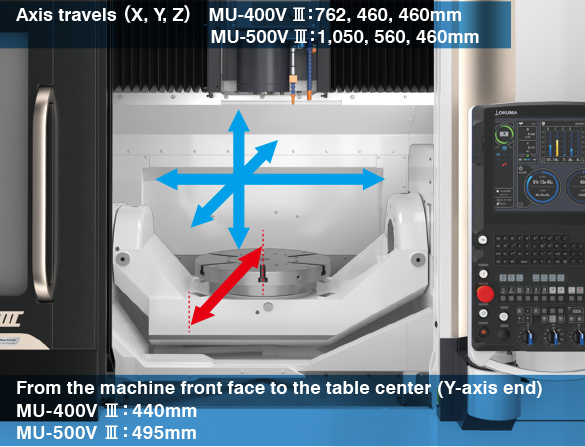

Large machining area
Even though it is as space-saving as a vertical machining center, MU-500V has the largest machining area among the machines in the same class. It can also handle with high efficiency 5-axis machining of large workpieces with a diameter as large as 700 mm.
Machining capacities (actual data)
Spindle 15,000 min-1 (No.40) wide-range spindle (option) Workpiece material: S45C
| Tool | Spindle min-1 |
Cutting m/min |
Feed rate mm/min |
Width mm |
Depth mm |
Chips cm3/min |
|---|---|---|---|---|---|---|
| ø80 face mill 8 blades | 895 | 225 | 3,000 | 56 | 3 | 504 |
| ø20 roughing end mill, 7 flutes | 4,000 | 251 | 8,400 | 4 | 20 | 672 |
| ø63 insert drill | 720 | 143 | 108 | - | - | - |
| Tap M30P3.5 | 255 | 24 | 893 | - | - | 72% (Spindle load) |
Highlighted Specs
| Item | Unit | MU-400V Ⅲ | MU-500V Ⅲ |
|---|---|---|---|
| Table size | mm (in) | ø400 (ø15.75) | ø500 (19.69) |
| Spindle speed | min-1 | 8,000 [15,000, 20,000, 35,000] | |
| Tool storage | tools | 20 [32, 48, 64, 98, 132, 166, 200, 234, 268] * | |
| Motor | kW (hp) | 11/7.5 [22/18.5, 30/22, 15] (15/10 [30/25, 40/30, 20]) (10 min/cont) |
|
| Machine size (W × D × H) | mm (in) | 2,160 × 2,783× 2,946 (85.04 × 109.57 × 115.98) |
2,515 × 3,231 × 3,045 (99.02 × 127.20 × 119.88) |
* ATC with 64 or more tools will use matrix method and tools will have fixed addresses
[ ] : Option
