For the globally growing large diameter turn-mill applications

Machine Specifications

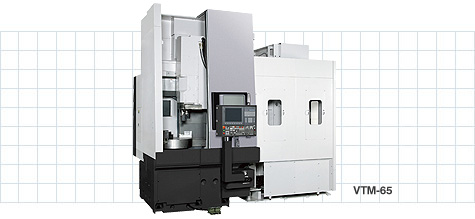

Item Unit VTM-65 VTM-100 VTM-200
Capacity Max swing diameter mm (in) ø750 (29.53) ø1,000 (39.37) ø2,400 (94.49)
Max machining diameter mm (in) ø650 (25.59) ø1,000 (39.37) ø2,000 (78.74)
Max machining length mm (in) 635 (25) 840 (33.07) 1,200 (47.24)
Max workpiece load
(including chuck)
kg (lb) 800 (1,760)
[2,000 kg/200 min-1]*1
1,200 (2,640)
[2,000 kg/200 min-1]*1
7,000 (15,400)
[8,500 kg/65 min-1]*1
Travels X axis mm (in) 500 (19.69) 650 (25.59) 1,600 (62.99)
Z axis mm (in) 635 (25) 840 (33.07) 1,200 (47.24)
C axis deg 360 (minimum control angle: 0.001)
Work Spindle Speed min-1 10 to 1,250 6 to 1,250 5 to 200
Speed ranges OSP: infinitely variable
FANUC: 2 auto
(2-spd mtr coil sw)
2 auto ranges (2-speed motor coil switching)
Type of spindle nose JIS A2-11 ø380 flat
Front bearing ID mm (in) ø200 (7.87) ø260 (10.24)
Through-hole diameter mm (in) ø110 (4.33) ø160 (6.30)
Floor to spindle nose mm (in) 1,105 (43.50) 1,150 (45.28) 1,240 (48.82)
Spindle support 2-point roller bearing spindle support
Turret
(tool spindle)
Turret type ATC single tool
Standard tool mm (in) □25, □32 (1, 1-1/4)
Boring bar diameter mm (in) ø40, ø50 (ø1-1/2, ø2)
Milling Tool Spindle Maximum spindle speed min-1 OSP: 20 to 4,500
FANUC: 10 to 4,500
Speed ranges 2 auto ranges (2-speed motor coil switching)
Shape, tapered bore BT50 [BIG-PLUS®]
Front diameter mm (in) ø90 (3.54)
Tool Change Tool shank BT50
Pull stud MAS Ⅱ
Max tools (magazine capacity) tool 36 [60]
Tool selection Fixed adress type
Max tool diameter mm (in) ø170 (ø6.70) [w/o adjacent ø250 (ø69.85): 500 L (19.69), ø300 (11.82): 450 L (17.72)]
Max length (from gauge line) mm (in) 500 (19.69) [Touch Setter gauging length: max 360 (14.18)] 500 (19.69)
Max tool mass kg 30 (average 20)
Feed Axes Rapid feedrate X axis m/min (fpm) 18 (59.06) 16 (52.50)
Rapid feedrate Z axis m/min (fpm) 20 (65.62) 16 (52.50)
Rapid feedrate C axis min-1 20 10
Motors Work spindle motor kW (hp) OSP: 30/22 (40/30) (30 min/cont)
FANUC: 30/22 (40/30) (30 min/cont)
Milling tool motor kW (hp) OSP: 15/11 (20/15) (15 min/cont)
FANUC: 7.5/5.5 (10/7.5) (15 min/cont)
Machine size Height mm (in) 4,100 (161.42) 4,300 (169.29) 4,603 (181.22)
Floor space
(L × W)
mm (in) OSP: 4,066 × 2,990
(160.08 × 117.72)
FANUC: 4,066 × 3,030
(160.08 × 119.29)
OSP: 4,286 × 3,175
(168.74 × 125.00)
FANUC: 4,286 × 3,205
(168.74 × 126.18)
OSP: 5,561 × 5,258
(218.94 × 207.01)
FANUC: 5,561 × 5,288
(218.94 × 208.19)
Mass kg (lb) 11,000 (24,200)*2 OSP: 13,700 (30,140)*2
FANUC: 13,500 (29,700)*2
27,000 (59,400)*2
CNC Control OSP-P300SA, FANUC 31i-B

[ ]: Optional

*1. Max workpiece mass at the indicated spindle speed limit.

*2. Machine only; without ATC magazine.
