- MU-6300V-L
- MU-6300V-L with all new design and equipped with the new generation CNC "OSP-P500".
See the MU-6300V-L machining a polygonal chamber for semiconductor manufacturing equipment.
- MU-5000V
- Highly efficient machining with amazing machining capacity.
- MU-6300V
- High quality machined surfaces with the high following of 5-axis machining.
- MU-V series
- Brings together a highly efficient 5-axis machine and highly accurate 3-axis machine for machining in a new dimension.
- MU-5000V-L
- The 5-axis machining center that provides optimum performance.
- MU-6300V-L Demonstration
- High efficiency and high productivity in 5-axis, multi-sided machining.
- Headlight Mold
- Reducing the lead times for die and mold machining, including measurement.(MU-6300V)
- 3D Machine View
- A 3D representation of the MU-6300V.
- MU-8000V Titanium Machining
- New cutting technology swarf milling with barrel tools for hard to machine materials achieve a drastic reduction of cutting time for finishing operations.
- Innovations in volumetric accuracy

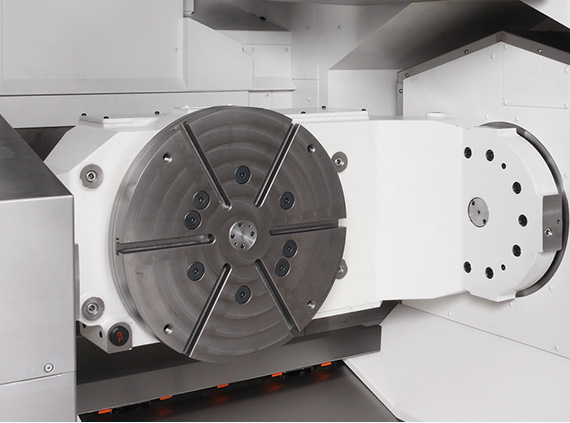

- Highly rigid trunnion table supports high-accuracy 5-axis machining
-
High quality machined surfaces with the high following of 5-axis machining
●Highly-rigid trunnion table supports both ends
●With ball-screw cooling (Std), reduced following error is achieved while maintaining highly accurate machining.
The indexing accuracies that take 5-axis machining to higher accuracies (MU-5000V Actual data)
●Indexing accuracy
- ・A-axis indexing accuracy/Indexing return accuracy: ±0.68 sec/±0.40 sec
- ・C-axis indexing accuracy/Indexing return accuracy: ±0.78 sec/±0.14 sec
●Fast operation
- ・A-axis/C-axis 90°clamp/unclamp indexing time: 1.0 sec/1.2 sec
- A 5-axis machine that really cuts
- Beyond the limits of conventional 5-axis machining
Highly efficient machining with amazing machining capacity - MU-5000V, MU-6300V Actual data ([ ]: MU-6300V specs)
-

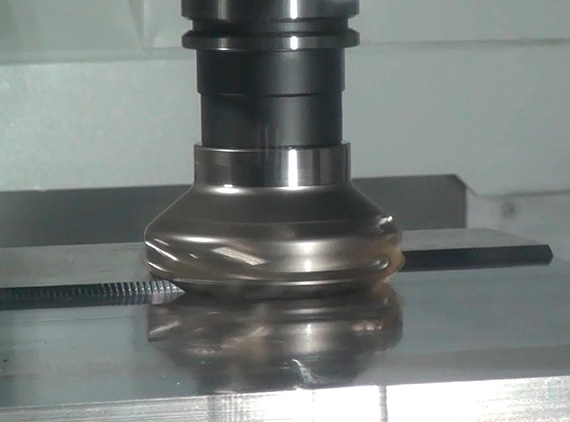

- Face milling capacity: 504cm3/min (S45C)
-
●ø80 face mill 8 blade (coating)
- Spindle speed: 895min-1
- Cutting speed: 225m/min
- Feedrate: 2,250mm/min
- Cut width × infeed: 56 × 4mm
-

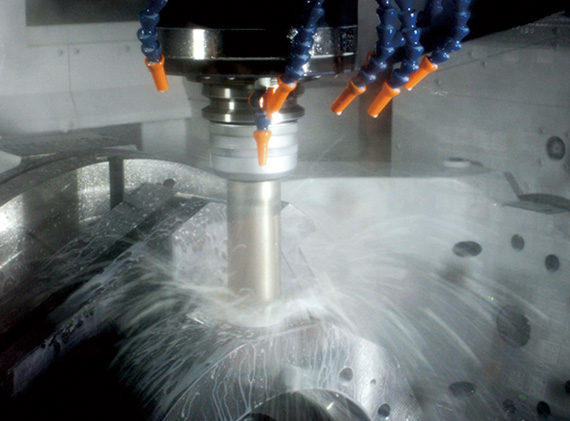

- End milling capacity: 672cm3/min (S45C)
-
●ø20 roughing end mill 7 blade (carbide)
- Spindle speed: 4,000min-1
- Cutting speed: 251m/min
- Feedrate: 4,800mm/min [2,800mm/min]
- Cut width × infeed: 7 × 20mm [12 × 20mm]
- Process-intensive machining with turning capacity that approaches that of a lathe
- Turning capacity: 3mm2 (S45C)
-
- Machining dia: ø164mm [ø250mm]
- Cutting speed: 130m/min (table rotation: 252min-1)
- Feedrate: 0.6mm/rev
- Infeed: 5mm
※ The above are actual examples. Your results may vary due to differences in specifications, tooling and cutting conditions.
- Get a real sense of the good visibility and
operability required in 5-axis machining - Superb operator access to the machining chamber
-
-
-

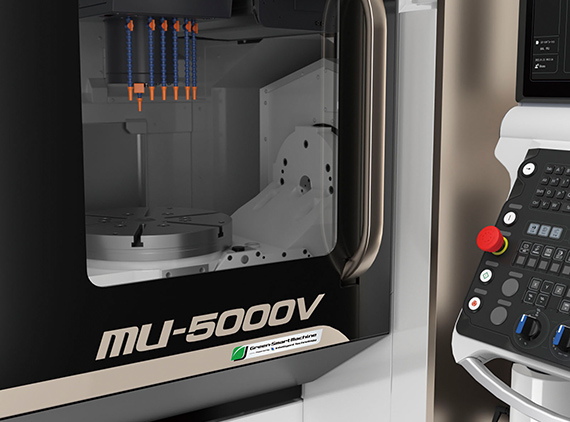

Structure allows easy tool edge confirmation during setup and machining
●Best table, spindle, and operation panel layout in terms of operability
-

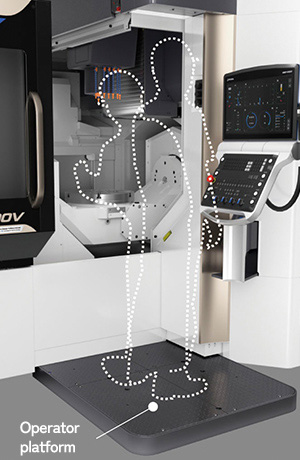

Large step platform for easy working
●Operating stress reduced with large platform so that operator does not have to worry about footing
-
Large window for good visibility in machining compartment
-
-
-
-

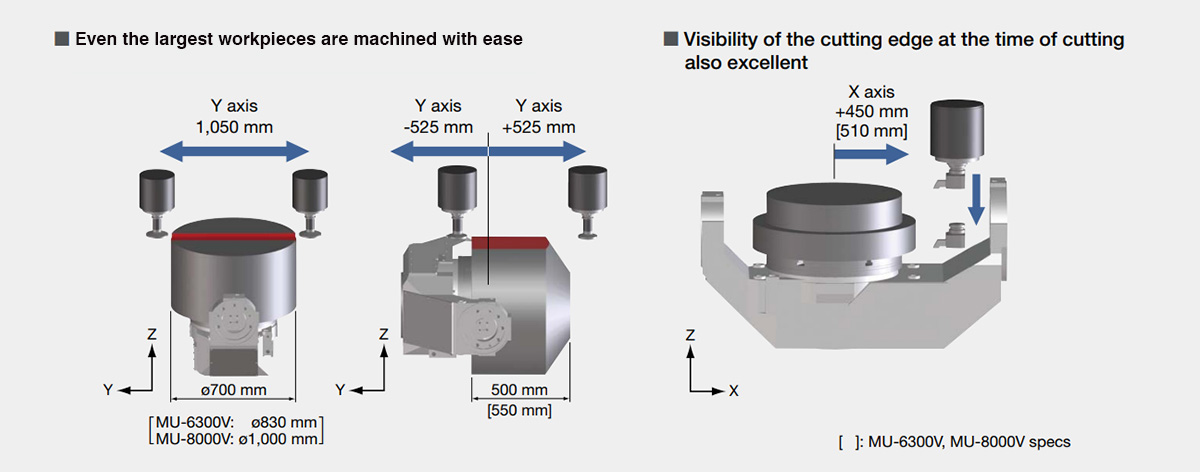

- Large machining range; tools can be changed with
trunnion still in swing position - The tool reaches the end of the workpiece even with the table at various inclination angles, enabling wide-range 5-axis machining.Tools can be changed with the trunnion still in a swing position, leading to reduced cycle times and higher machining accuracies.
-
Highlighted Specs
| Item | Unit | MU-5000V | MU-6300V | MU-8000V |
|---|---|---|---|---|
| Table size | mm(in) | ø500 (ø19.69) | ø630 (ø24.80) | ø800 × 630 width (ø31.50 × 24.80) |
| Spindle speed | min-1 | 10,000, 6,000 | 10,000, 6,000 | 10,000, 6,000 |
| Tool storage | tools | 32 | 32 | 32 |
| Motor | kW(hp) | 11/7.5 (10 min/cont) (15/10) | 11/7.5 (10 min/cont) (15/10) | 11/7.5 (10 min/cont) (15/10) |
| Machine size (W × D × H) |
mm(in) | 3,995 × 2,750 × 3,435 (157.28 × 108.27 × 135.24) |
4,850 × 2,990 × 3,525 (190.94 × 117.72 × 138.78) |
5,280 × 2,990 × 3,625 (207.87 × 117.72 × 142.72) |
| Spec extension | L | L | L |
L: Turning specification
