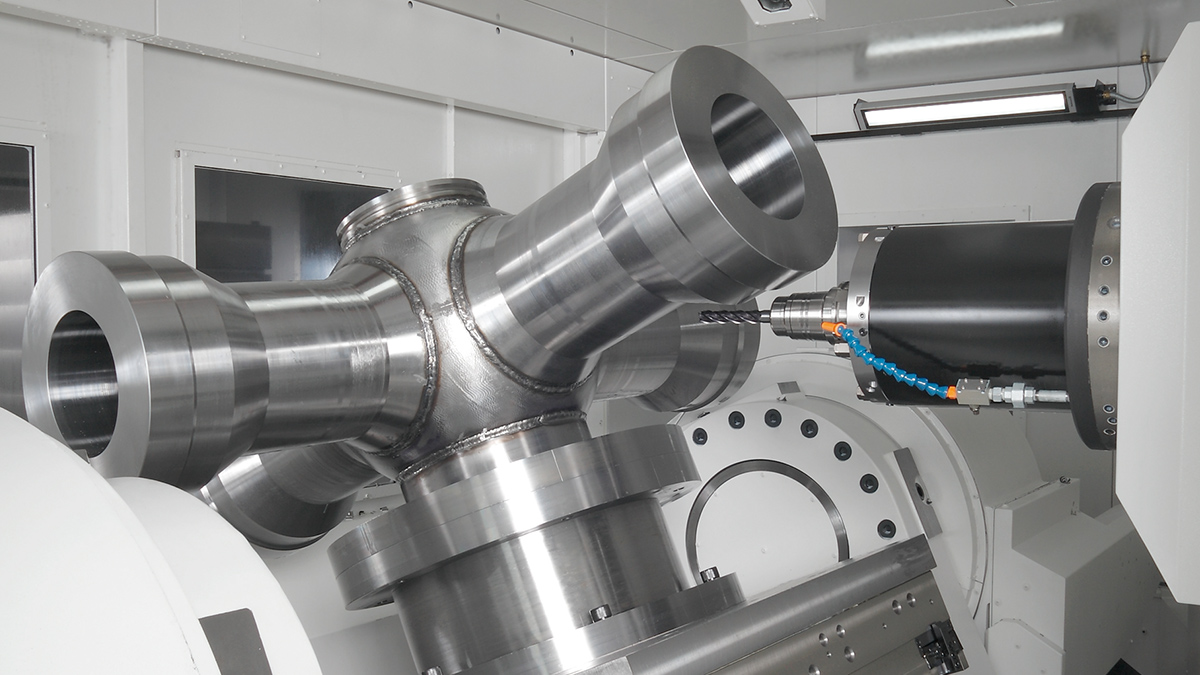

- Propeller Hub
- Integrated machining from multiple directions.
It even supports turning of large unbalanced workpieces.
- 3D Machine View
- A 3D representation of the MU-10000H.
Experience the power of process-intensive machining with 5-axis multitasking
Highly rigid machine structure
Bed and column to achieve heavy-duty cutting
- Ideal rib layout to resist bending and torsion
Accurate, powerful, and highly accurate axis drive system
- High accuracy double ball screws are used on X, Y, and Z axes
- Double motor drive system on A, B axes
Thermal deformation controlled for high-accuracy machining
- Ball screw and motor base cooling on X, Y, Z axes
- A, B axis drive unit cooling
Trunnion table that supports high speed, high accuracy machining of large parts

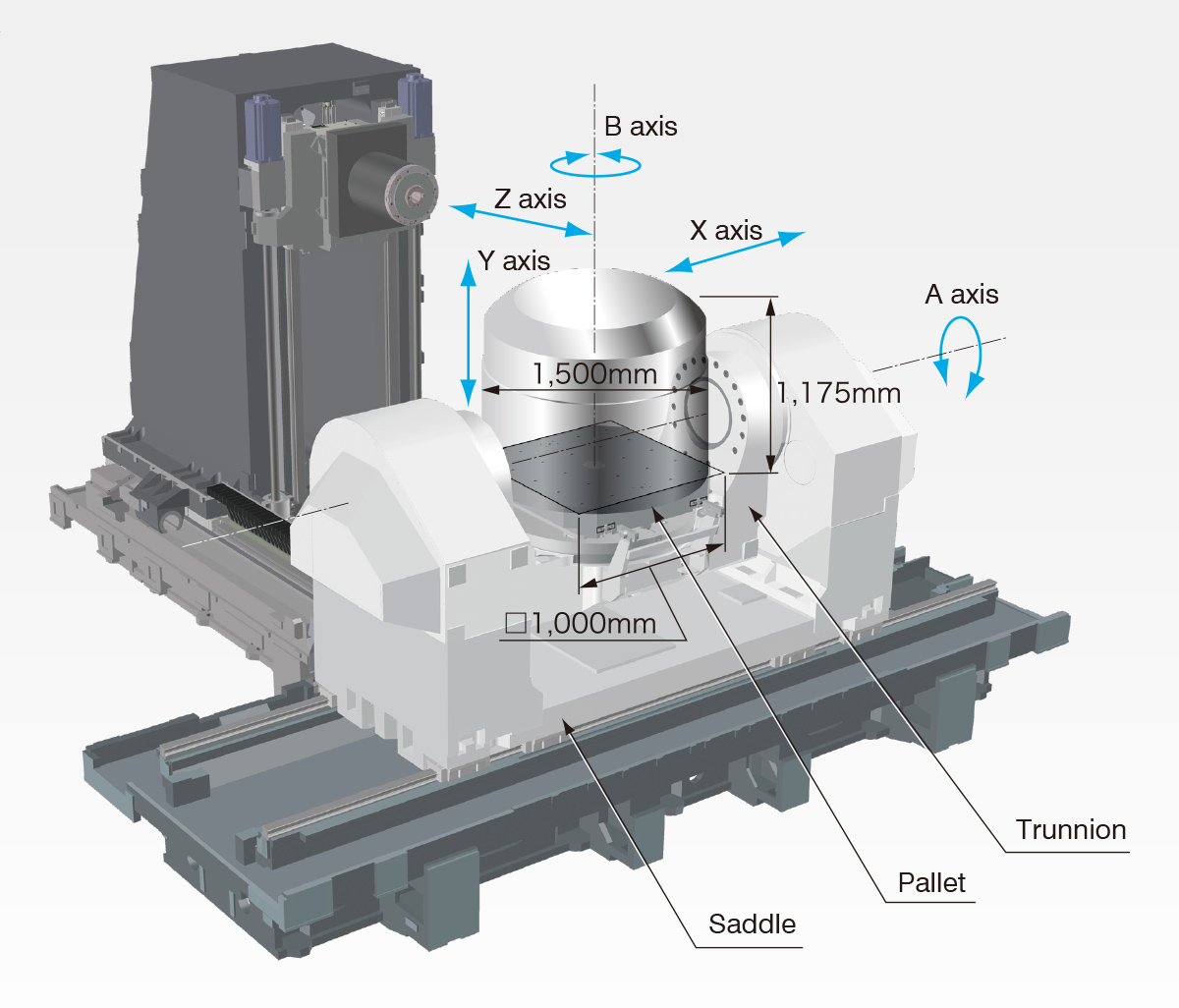

Swing ranges
- A axis (table swing)
+35 to −115° - B axis (pallet swing)
360°
Max workpiece
- Max workpiece swing diameter
ø1,500 mm - Max workpiece height
1,175 mm - Max workpiece weight
2,500 kg
Pallet size
- 1,000 × 1,000 mm
Axis travel
- X: 1,550 mm
- Y: 1,600 mm
- Z: 1,650 mm
Highly efficient machining with outstanding machining capacity
Beefy torque makes easy work even of difficult-to-machine material
- Integral motor/spindle: 1,071 N-m
- Gear spindle: 1,920 N-m (Optional)
Machining capacity
Gear spindle: 4,500 min-1, 40/30 kW (15 min/cont) (Optional)
| Tool | Stock removal cm3/min |
Spindle speed min-1 |
Cutting speed m/min |
Width × depth mm |
Feedrate mm/min |
|---|---|---|---|---|---|
| ø250 face mill, 10 blade (cermet) |
1,000 | 293 | 230 | 175 × 6 | 953 |
| ø63 end mill radial facing, 4 blade (carbide) |
602 | 1,415 | 280 | 10 × 35 | 1,720 |
| ø50 end mill radial facing, 3 blade (carbide) |
700 | 1,780 | 280 | 50 × 10 | 1,400 |
(material S45C)
* The above are actual examples. Your results may vary due to differences in specifications, tooling and cutting conditions.
Highlighted Specs
| Item | Unit | MU-10000H |
|---|---|---|
| Pallet size | mm(in) | 1,000 × 1,000 (39.37 × 39.37) |
| Max workpiece dimensions | mm(in) | ø1,500 × 1,175 (ø59.06 × 46.26) |
| Spindle speed | min-1 | 6,000 |
| Tool storage | tools | 81 |
| Motor | kW(hp) | 45/37 (20 min/cont) (60/50) |
| Machine size (W × D × H) |
mm(in) | 6,880 × 10,930 × 3,694 (270.87 × 430.31 × 145.43) |
