The best monozukuri^* practices balance
high-accuracy machining and workability

*Craftsmanship-based manufacturing

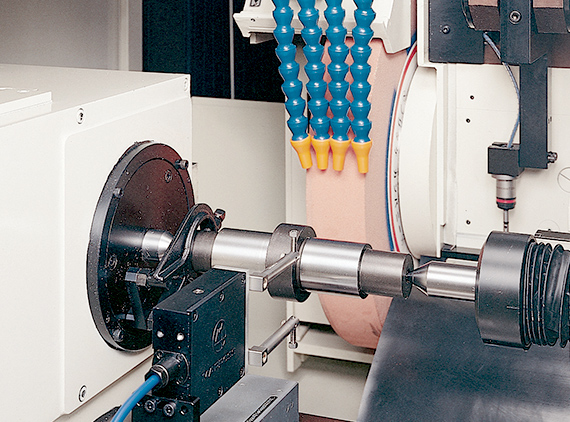

• Plain type

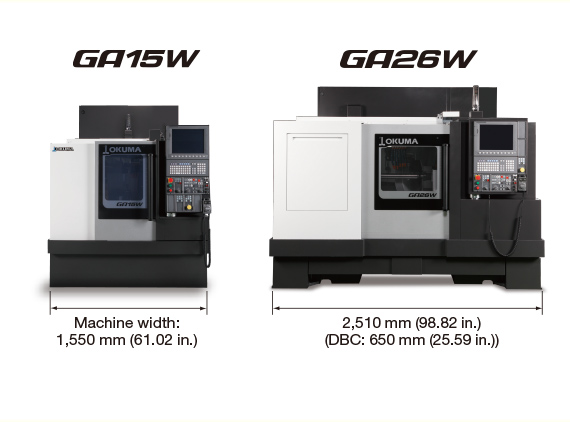

  Smaller machine space achieved with use of wheelhead traverse structure

  A wheelhead traverse structure requires a stronger foundation than a table traverse structure. Okuma’s high-rigidity technology meets the conditions needed for a wheelhead traverse structure to achieve a compact body.

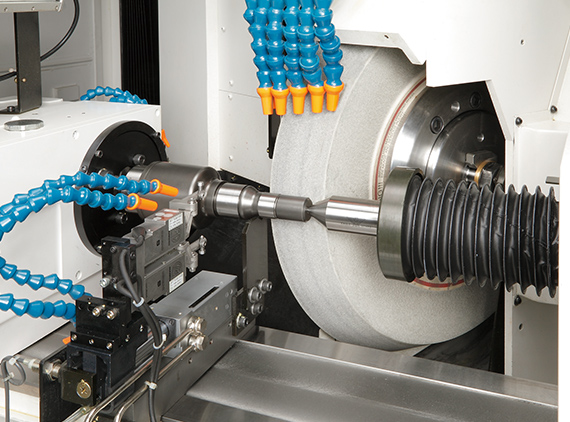

• Angle type

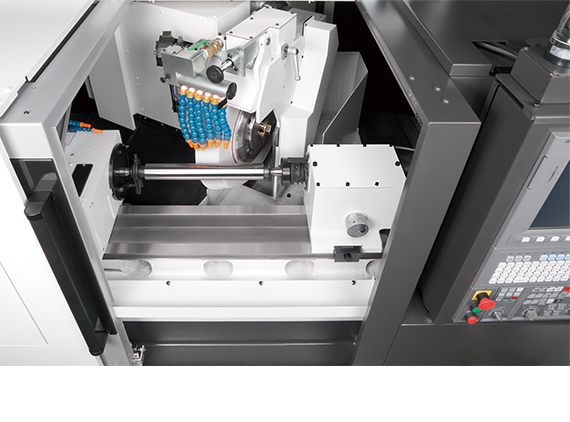

  Superior user-friendly design supports automation

  The upper portion of the front door can accommodate various loader positions. Line flexibility from the space-saving design also contributes to greater automation.

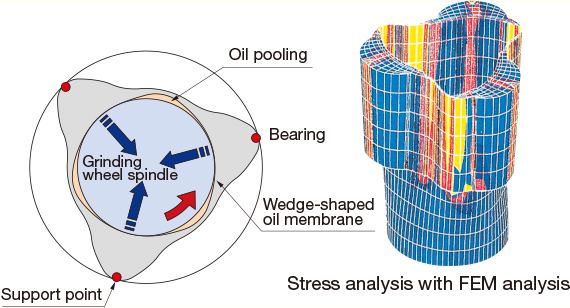

Hydrodynamic bearing provides for heavy-duty and highly accurate grinding—with shorter cycle times

Non-round plain bearing wheel spindle with a dynamic pressure structure supports the wheel spindle with wedge-shaped oil film pressure that is generated by wheel spindle rotation. Retention strength is a powerful 1 t, in addition to which wheel rotation accuracy is kept to within 0.01 µm for a good balance of high accuracy grinding even in heavy-duty cutting. Also, because the wheel spindle has no metal contact, its original performance is maintained semi-permanently.

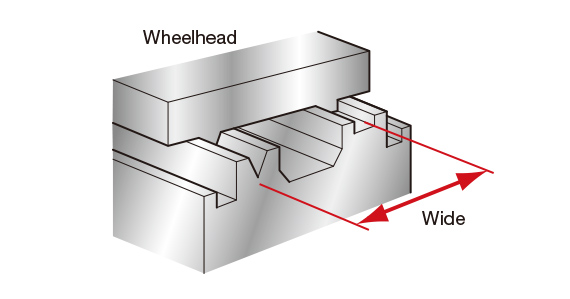

• High machining efficiency maintained
  with wide V—Flat guideway

  A widened V—Flat guideway system is used that expands the span between the V and Flat guideways beneath the saddle. Higher workpiece support rigidity enables grinding with full power of 7.5 kW (optional 15 kW). The grinding load on the wheelhead during heavy-duty grinding is supported by wide V—Flat guideway for high machining efficiency.



• Machining time is shortened with high
  speed feed at the top level in the class

  Structure with unrivaled high following characteristics gives high feed speeds of ø30 m/min on the X axis and 20 m/min on the Z axis. Shorter non-cutting times contribute to improved machining efficiency.

  • X-axis feedrate: ø30 m/min
  • Z-axis feedrate: 20 m/min
